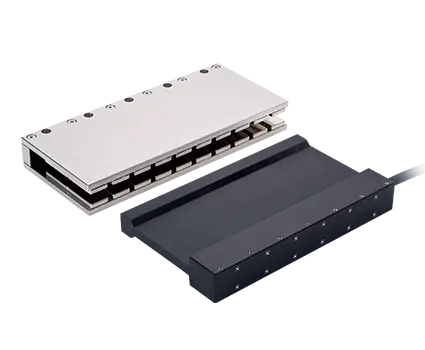

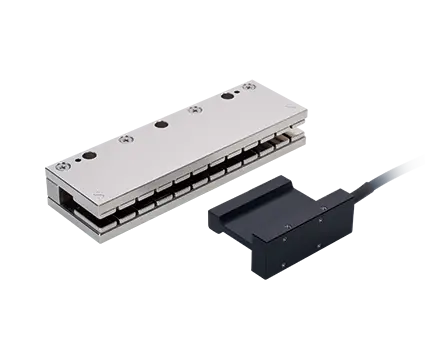

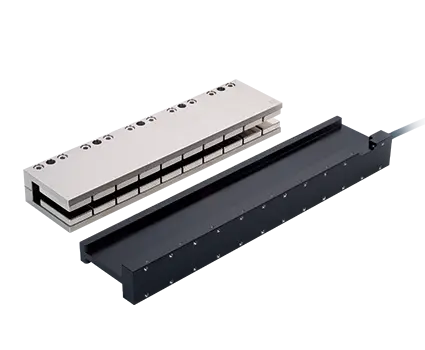

HIWIN coreless U shape motor is with no backlash, zero cogging force and low velocity ripple. Besides, there is no attraction force between forcer and stator because of coreless design. HIWIN LMC Series Linear motor was designed for low payload application and continues motion curve, including high speed and low payload of automatic machine, high clean environment of manufacturing equipment for semi-conductors and LCDs, automated optical inspection (AOI), EDM machine tool and CNC piston turner.

• V_max = 5m/s
• A_max = 5G
• Velocity ripple = 0.80% at V =0.1 m/s (before compensating)
• No noise 0 Db
• Direct Drive
