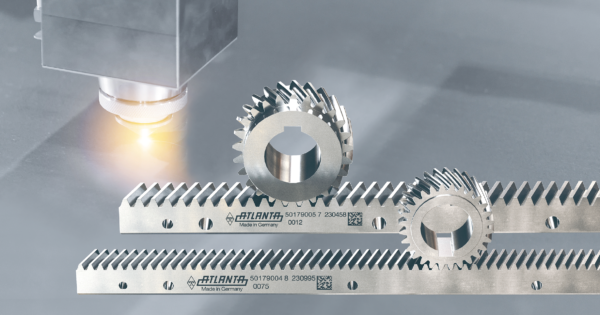

Features of the new UHPR racks

• Heat-treatable steel acc. ATLANTA-Standard for maximum hardness and high resistance against wear.
• Teeth hardened with the ATLANTA high-performance hardening process
• Rack profile ground on all sides for maximum precisionand and smallest linear backlash
• Total pitch error GT_f/1000mm = 0,030mm
• Tooth thickness tolerance -15µm
• 19°31’42” helical and straight toothed
• Module 2 and 3
• Length of the racks 1000mm
• Maximum feed force: 19,5 kN (m=2) or 28,5 kN (m=3)
