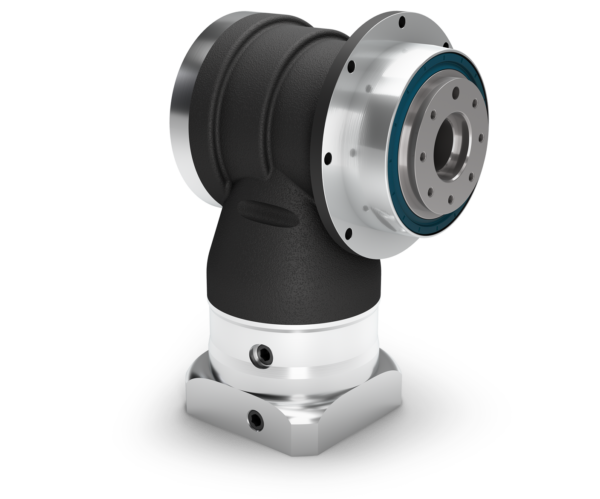

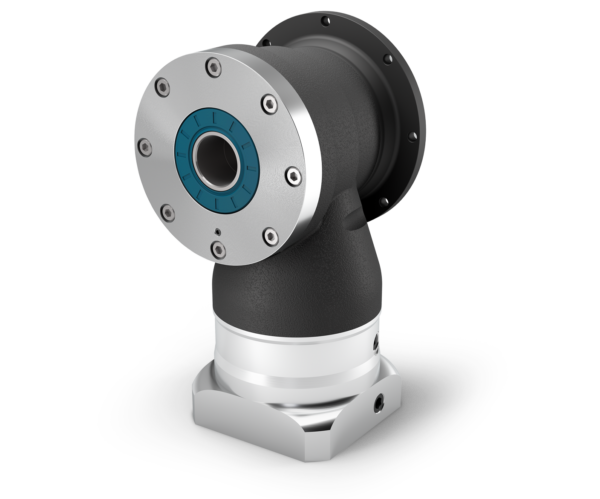

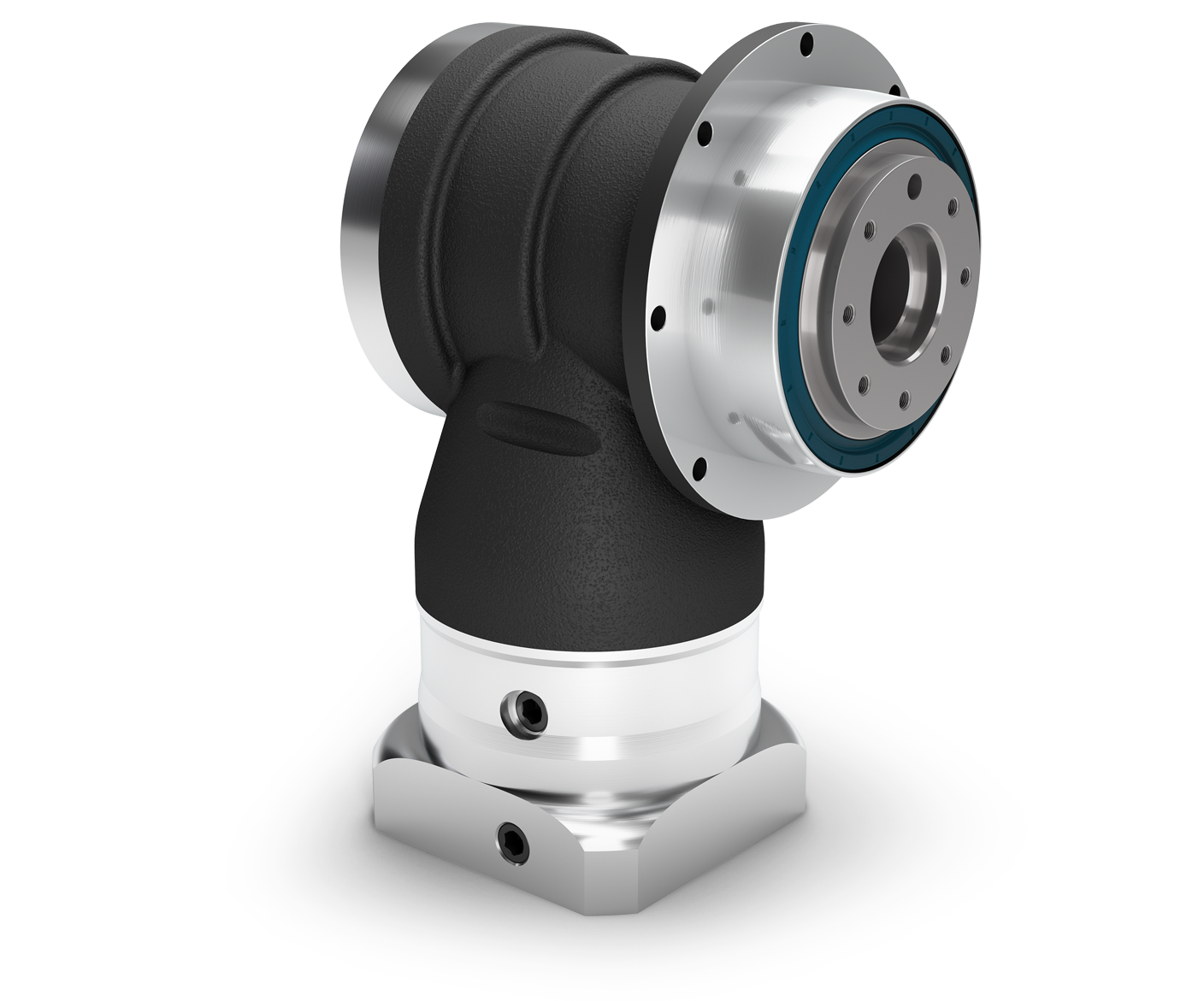

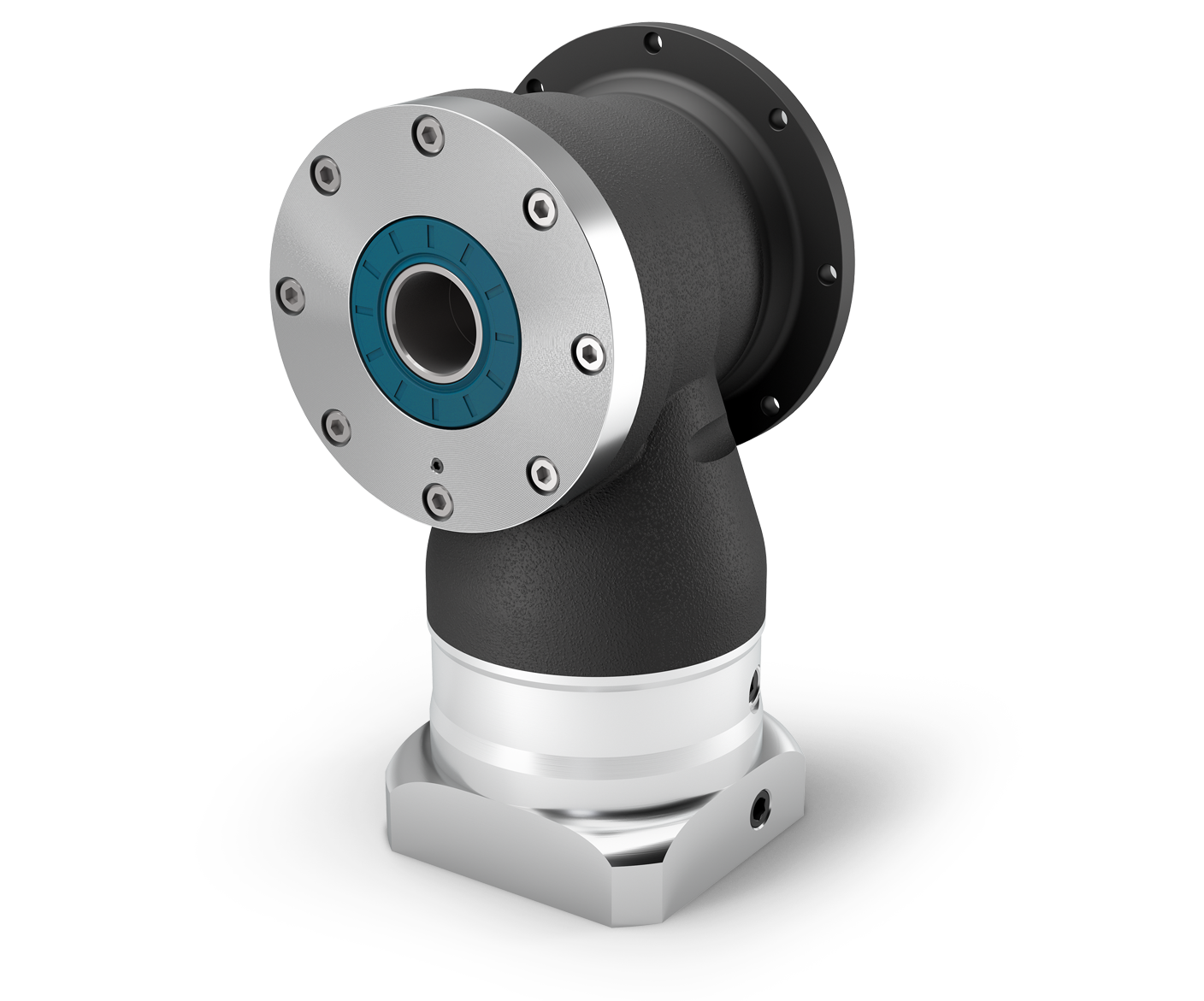

Our WPSFN is particularly easy and quick to integrate thanks to its standardized flange interface and offers high torsional rigidity. With its hypoid gearing, as well as the helical-toothed planetary stage, it achieves optimal synchronization for best surface qualities. The shortest right-angle precision gearbox, in a single-stage design with integrated hollow shaft, offers you new design solutions.

Features

• Precision Line
• Right angle gearbox
• Helical gear (2-stage)
• Hypoid gear right angle stage
• Preloaded angular contact roller bearings
• Rotary shaft seal
• Extra large round type output flange
• Counterdirectional rotation
• Planet carrier in cage design (2-stage)
